ON SITE TIME
Under 4 Hours
Manual inspection of ageing asbestos-cement roofing presents three critical barriers: high-risk surface fragility, the logistical footprint of physical access equipment, and the heavy administrative burden of Work at Height (WAH) and Permit to Work (PTW) protocols.

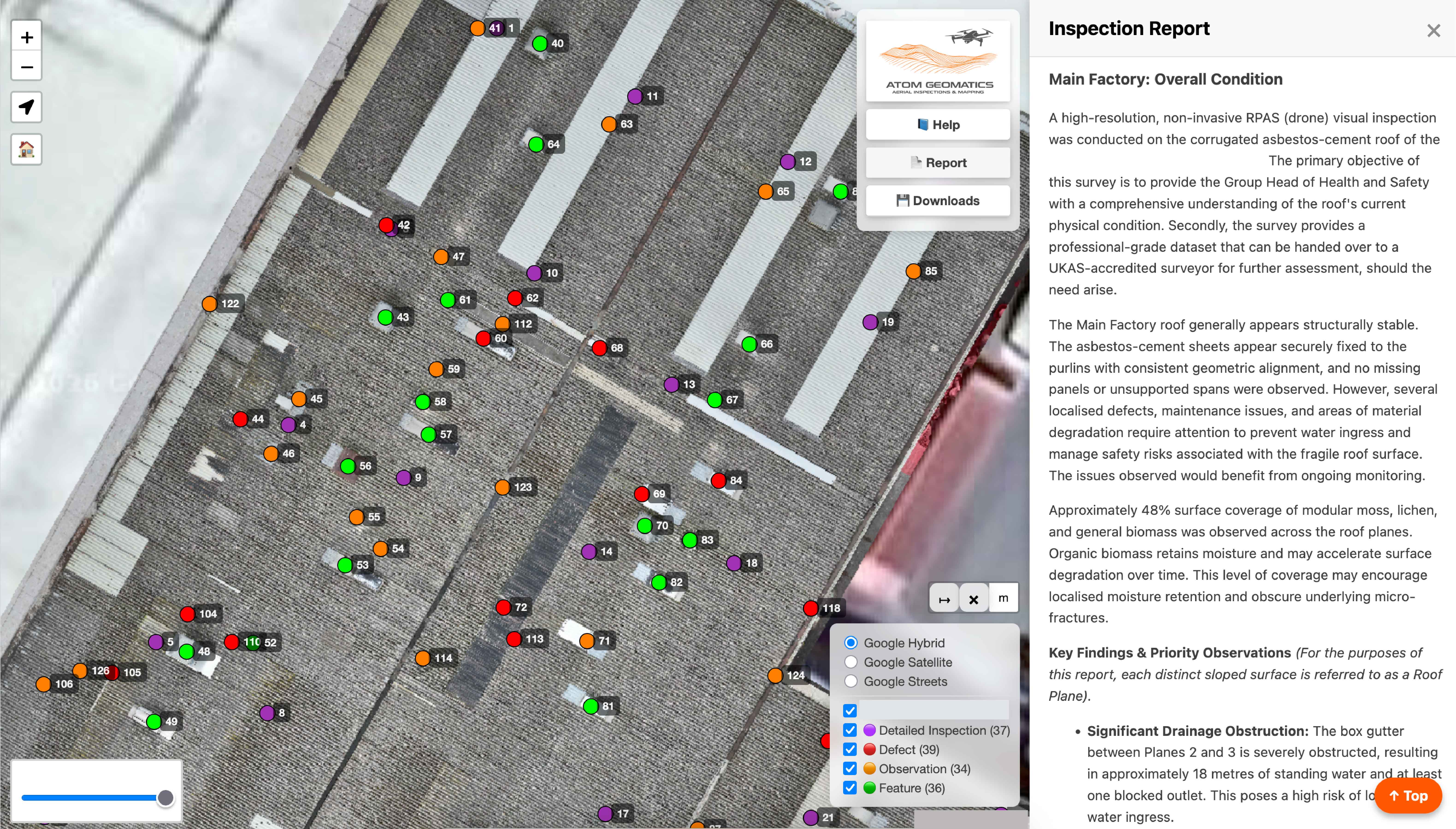

Atom Geomatics was commissioned to deliver a comprehensive visual record of the asset. By conducting a non-invasive aerial inspection, we documented the visible condition of the roofing through high-resolution imagery—bypassing the hazards and operational constraints typically associated with manual roof access.
The sub-millimetre audit identified several high-priority observations that ground-based observers could not detect:

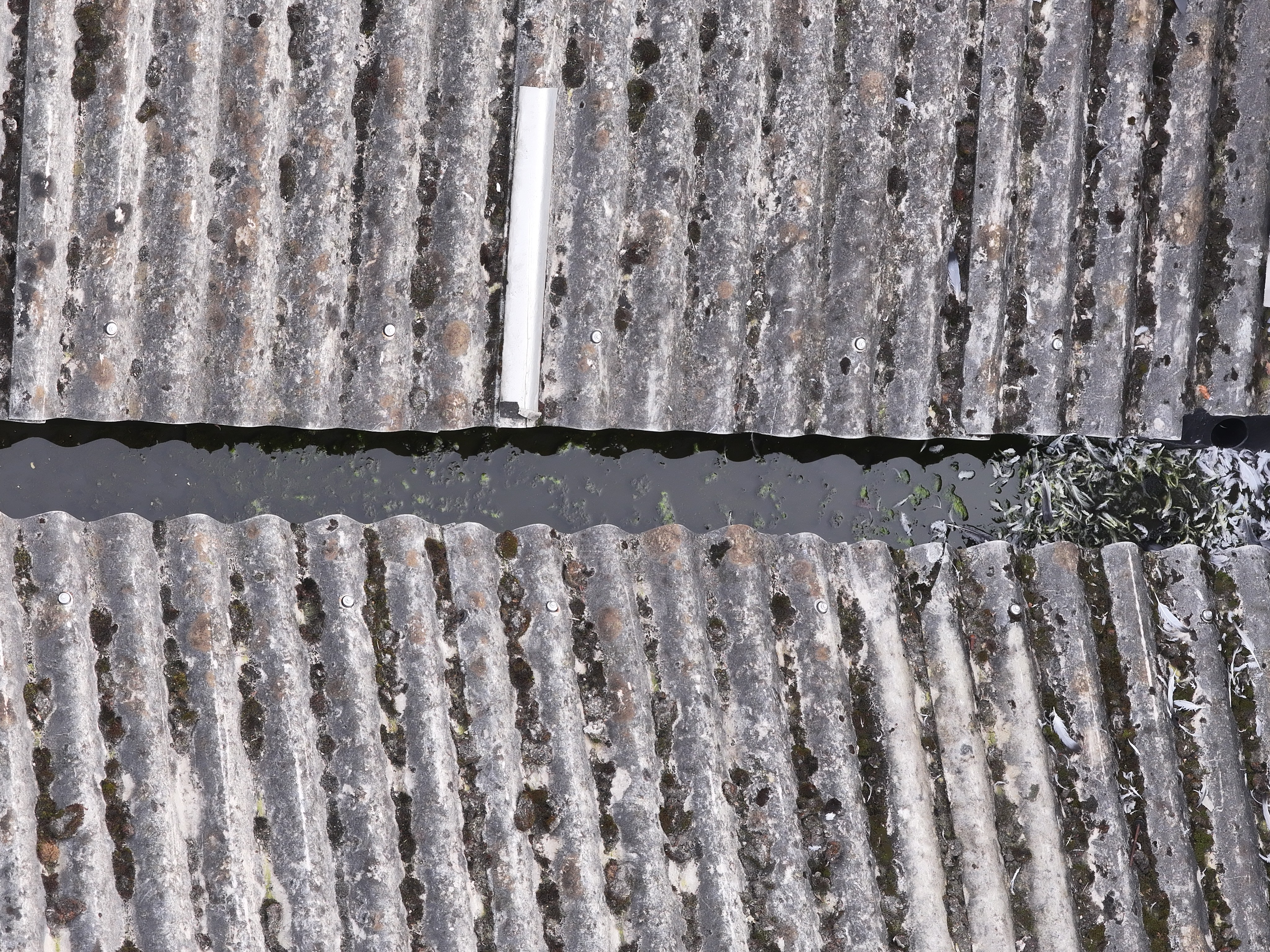

Drainage Observations: Identified significant standing water in primary box gutters, providing visual evidence of potential drainage issues for further maintenance review.

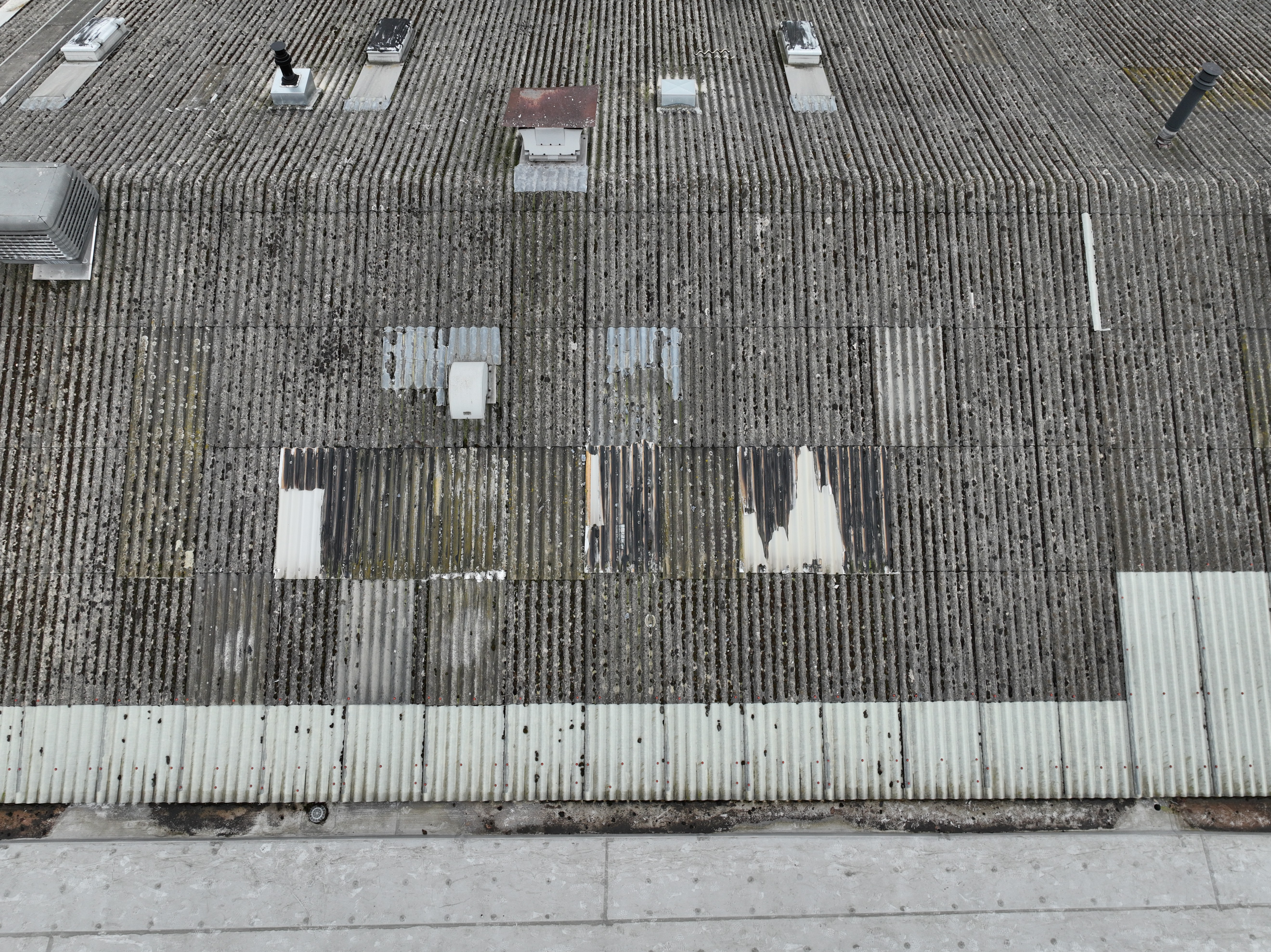

Material Surface Fractures: Pinpointed longitudinal linear fractures and widespread "end-lap" splitting across the facility, documenting the current physical state of the roofing materials.

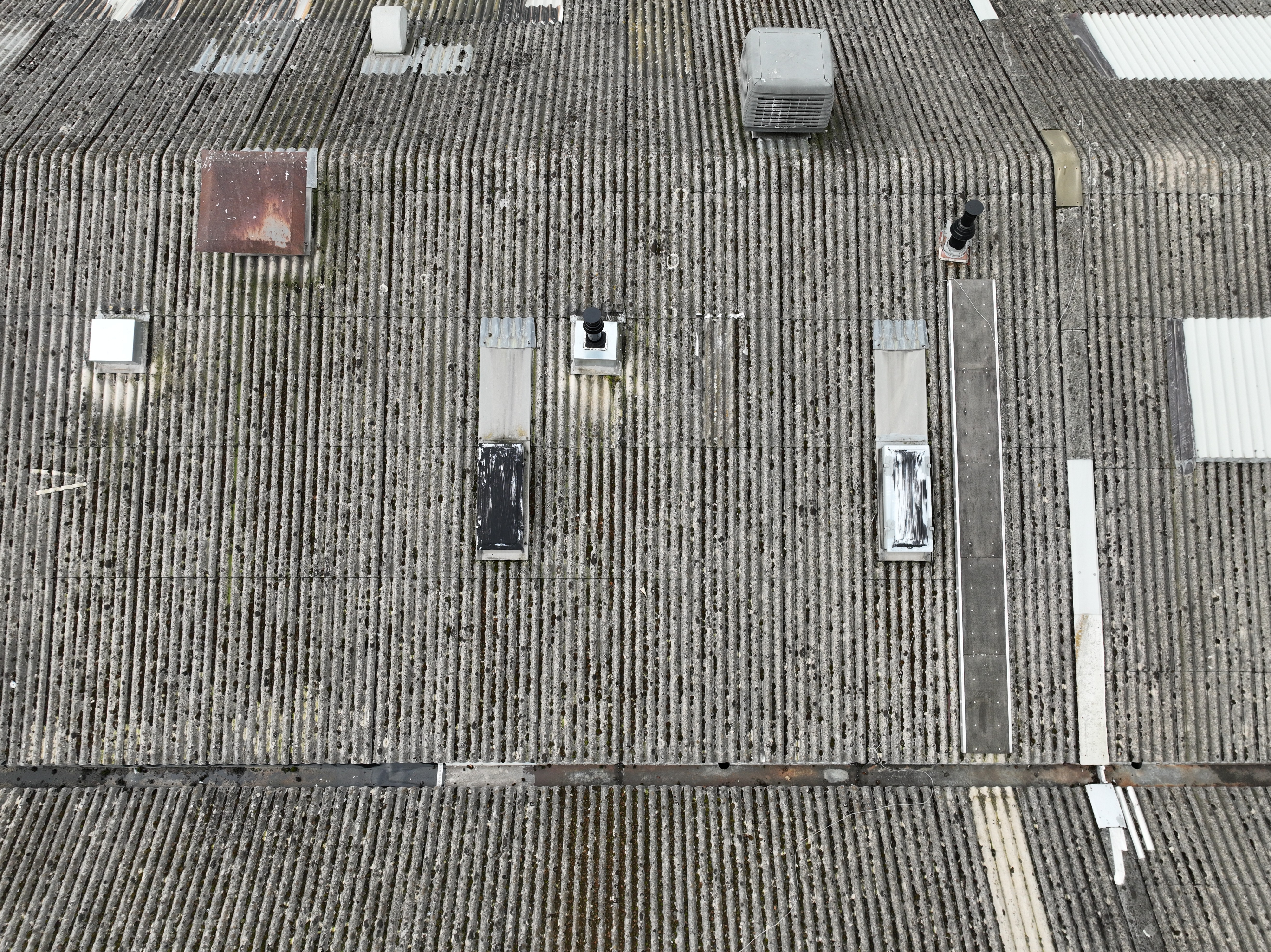

Debris & Static Loads: Located unverified static loads and dislodged roofing components left in situ from previous maintenance activities.
EFFICIENCY IN ACTION
Zero Operational Downtime: ...
Rapid Data Capture: ...
High-Resolution Detail: ...
Mechanical Interface Detail: ...
The survey provided the client with a definitive baseline of asset health, allowing them to transition from reactive repairs to a targeted, data-driven maintenance strategy. By digitising the inspection process, we delivered the required assessment while eliminating the substantial costs and administrative burden of traditional access.
